BlackSpider BSA-V45.4 45000W 4-Channel Amplifier

BlackSpider BSA-V45.4 45000W 4-Channel Amplifier

Packaging

PRODUCT FEATURES:

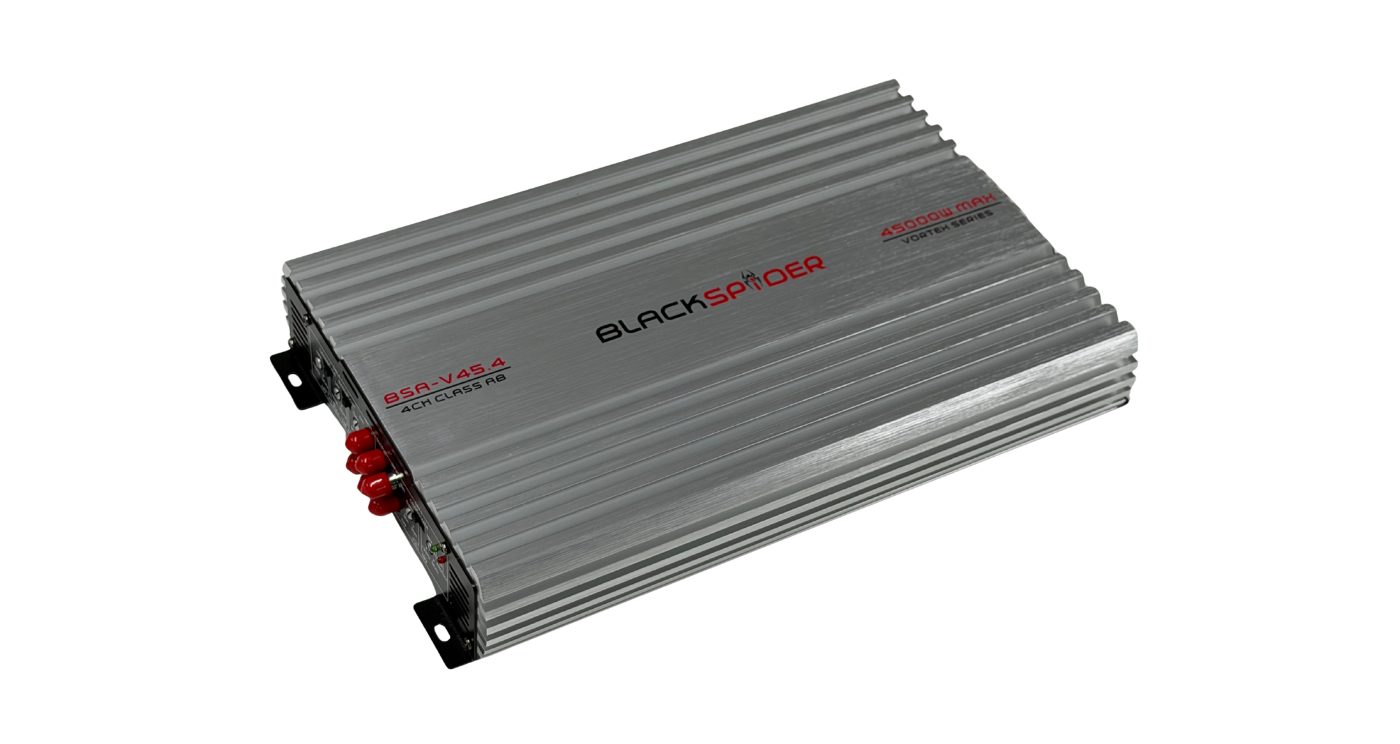

BlackSpider BSA-V45.4 Vortex 45000W 4-Channel Amplifier

The BlackSpider BSA-V45.4 Vortex   |   45000W 4-Channel Amplifier

Vortex Series

The BlackSpider BSA-V45.4 is part of the new Vortex Series of car audio amplifiers. Its 4-channel Class AB configuration provides multiple installation options for powering speakers, high-output drivers or compatible speaker combinations. Power output is rated at 300W RMS × 4 at 4 ohms and 450W RMS × 4 at 2 ohms. This amplifier can also be operated in bridged configuration, producing 900W RMS × 2 at 4 ohms.

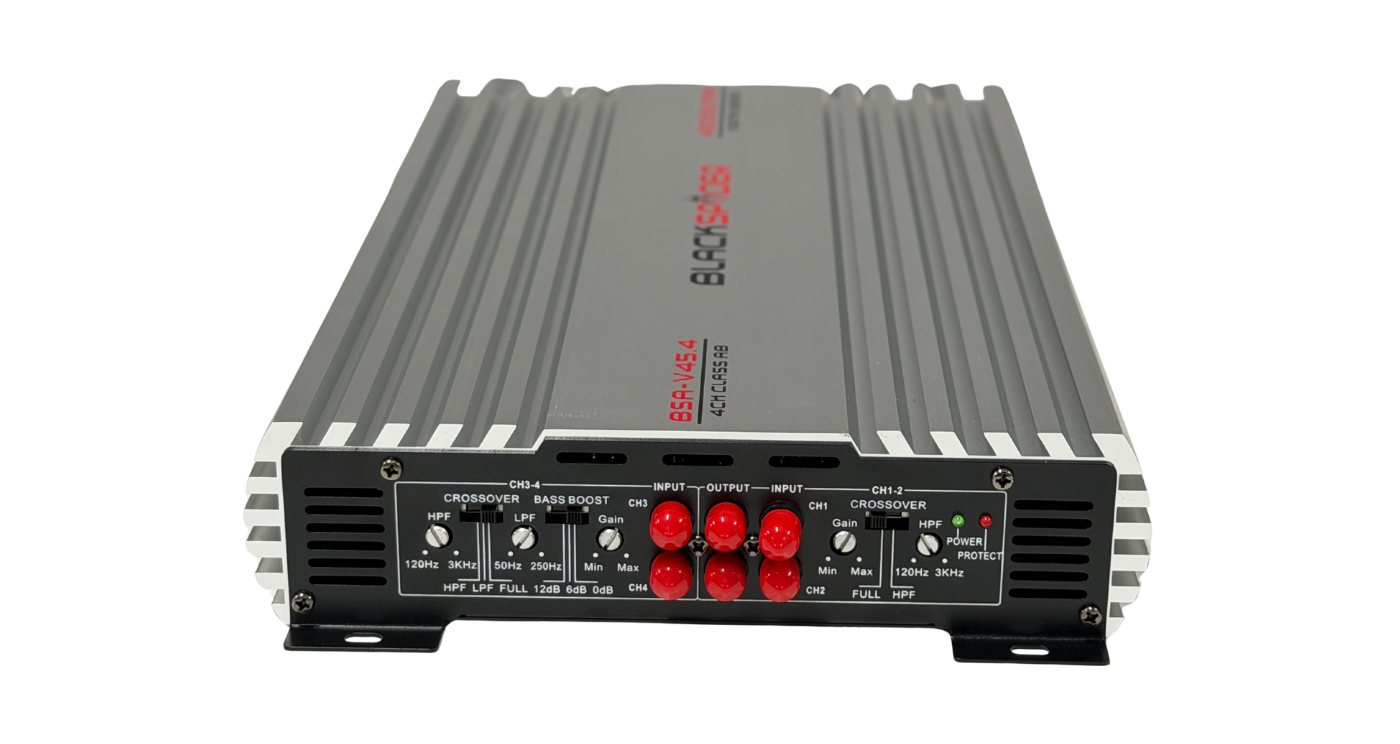

The BSA-V45.4 includes variable high-pass and low-pass crossover controls, adjustable input sensitivity and 0–12 dB bass boost. A dual cooling fan system assists with airflow and heat management, while integrated short-circuit, thermal and overload protection provides additional protection during operation.

FEATURES:

45000W Maximum Power

4-Channel Class AB Circuitry

300W RMS × 4 @ 4 Ohms

450W RMS × 4 @ 2 Ohms

900W RMS × 2 @ 4 Ohms Bridged

Stable 4-Ohm Stereo Operation

Dual Cooling Fan System

Low-Level RCA Input

Bass Boost Control

Variable High-Pass Crossover

Variable Low-Pass Crossover

Adjustable Input Sensitivity

Stereo and Bridged Operation

Short-Circuit Protection

Thermal Protection

Overload Protection

11–15V DC Operating Range

2 × 40A Onboard Fuse Rating

⚠️ IMPORTANT:

• Observe the correct speaker impedance: Do not connect loads below the amplifier’s supported impedance.
• Allow adequate ventilation and tune correctly: Keep sufficient airflow around the amplifier and do not obstruct the dual cooling fans. Set gain, HPF, LPF and bass boost according to the connected speakers rather than operating the controls at maximum.
• Professional installation is recommended.

Please note that Click and Collect is only applicable for items weighing a volumetric maximum of 7 kg; items that weigh more than the maximum will be received through standard My Audio shipping.
