BlackSpider BSA-V55.1 Vortex 55000W Monoblock Amplifier
The BlackSpider BSA-V55.1 Vortex | 55000W Monoblock Amplifier
Vortex Series
FEATURES:
- 55000W Maximum Power
- Monoblock / 1-Channel Amplifier
- Class D Circuitry
- Vortex Series
- 2500W RMS × 1 @ 4 Ohms
- 3500W RMS × 1 @ 2 Ohms
- 4000W RMS × 1 @ 1 Ohm
- 1-Ohm Stable Operation
- Dual Cooling Fan System
- Low-Level Input
- Adjustable Input Sensitivity
- Variable Crossover Control
- Adjustable Bass Boost Frequency
- 0–12dB Bass Boost
- Wired Remote Level Control
- Short-Circuit Protection
- Thermal Protection
- Overload Protection
- 11–15V DC Operating Range
BlackSpider BSA-V55.1 Vortex 55000W Monoblock Amplifier

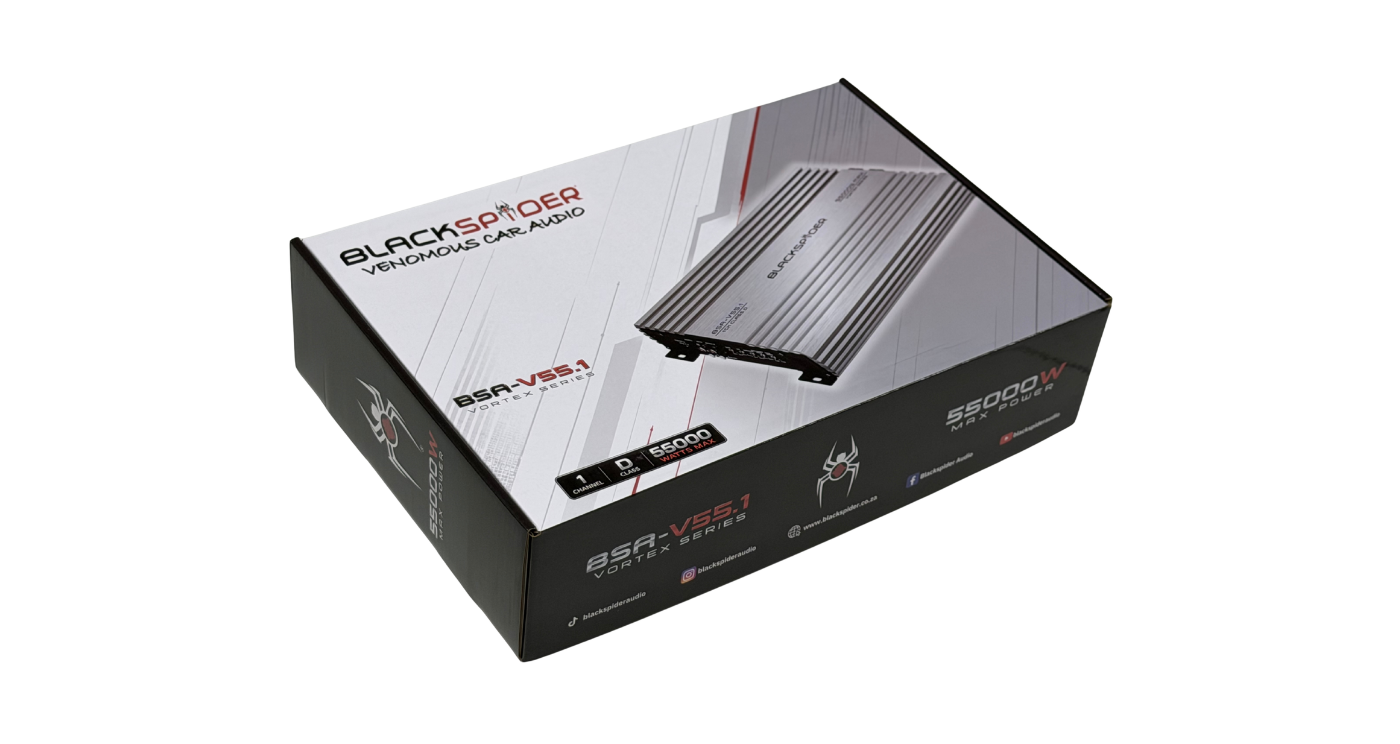

Packaging
PRODUCT FEATURES
BlackSpider BSA-V55.1 Vortex 55000W Monoblock Amplifier
The BlackSpider BSA-V55.1 Vortex | 55000W Monoblock Amplifier
Vortex Series
The BlackSpider BSA-V55.1 is a high-power 1-channel Class D monoblock amplifier from the BlackSpider Vortex Series, designed specifically for driving car audio subwoofer systems. It delivers 2500W RMS × 1 at 4 Ohms, 3500W RMS × 1 at 2 Ohms and 4000W RMS × 1 at 1 Ohm; this provides flexibility when configuring compatible single or multiple-subwoofer systems at different final impedance loads.
For system tuning, the amplifier features adjustable input sensitivity, crossover controls and 0–12dB bass boost. A dual cooling fan system assists with heat dissipation, while short-circuit, thermal and overload protection provide additional operational protection.
FEATURES:
55000W Maximum Power
Monoblock / 1-Channel Amplifier
Class D Circuitry
Vortex Series
2500W RMS × 1 @ 4 Ohms
3500W RMS × 1 @ 2 Ohms
4000W RMS × 1 @ 1 Ohm
1-Ohm Stable Operation
Dual Cooling Fan System
Low-Level Input
Adjustable Input Sensitivity
Variable Crossover Control
Adjustable Bass Boost Frequency
0–12dB Bass Boost
Wired Remote Level Control
Short-Circuit Protection
Thermal Protection
Overload Protection
11–15V DC Operating Range
⚠️ IMPORTANT
- Use suitable power wiring: Use appropriately rated power and ground cables with suitable external fuse protection, and ensure the vehicle’s electrical system can support the amplifier.
- Maintain cooling and correct tuning: Keep both cooling fan areas unobstructed and correctly adjust gain, crossover and bass boost settings to reduce clipping, overheating and possible subwoofer damage.
- Professional installation is recommended.
Please note that Click and Collect is only applicable for items weighing a volumetric maximum of 7 kg; items that weigh more than the maximum will be received through standard My Audio shipping.
as a a a a a a a a a a a a a a a a a a a
as a a a a a a a a a a a a a a a a a a a
an a a a a a a a a a a a a a a a a a a a
an a a a a a a a a a a a a a a a a a a a
*Be sure to follow us on Facebook or Instagram so you don’t miss out on our latest products, new stock and much more: My Audio and Security Facebook / My Audio and Security Instagram .*
| Brand | Blackspider |
|---|---|
| Color | Silver |
| Packaging Size | 27 x 41.5 x 10 cm |
| Packaging Weight | 5 kg |
| Volumetric Weight | 2.80 kg |
| Specification | Details |
|---|---|
| Brand | BlackSpider |
| Model | BSA-V55.1 |
| Series | Vortex Series |
| Amplifier Type | Monoblock / 1-Channel |
| Amplifier Class | Class D |
| Maximum Power | 55000W |
| RMS Power @ 4 Ohms | 2500W × 1 CH |
| RMS Power @ 2 Ohms | 3500W × 1 CH |
| RMS Power @ 1 Ohm | 4000W × 1 CH |
| Minimum Stable Impedance | 1 Ohm |
| Frequency Response | 10Hz–180Hz |
| Signal-to-Noise Ratio | ≥88dB |
| Total Harmonic Distortion (THD) | ≤0.08% |
| Input Sensitivity | 0.2V–6V |
| Crossover Range (HPF) | 40Hz–180Hz |
| Crossover Range (LPF) | 40Hz–2kHz |
| Bass Boost | 0–12dB |
| Operating Voltage | 11V–15V DC |
| Cooling System | Dual Cooling Fan |
| Protection | Short-Circuit, Thermal & Overload Protection |
| Impedance | RMS Power Output |
|---|---|
| 4 Ohms | 2500W RMS × 1 CH |
| 2 Ohms | 3500W RMS × 1 CH |
| 1 Ohm | 4000W RMS × 1 CH |

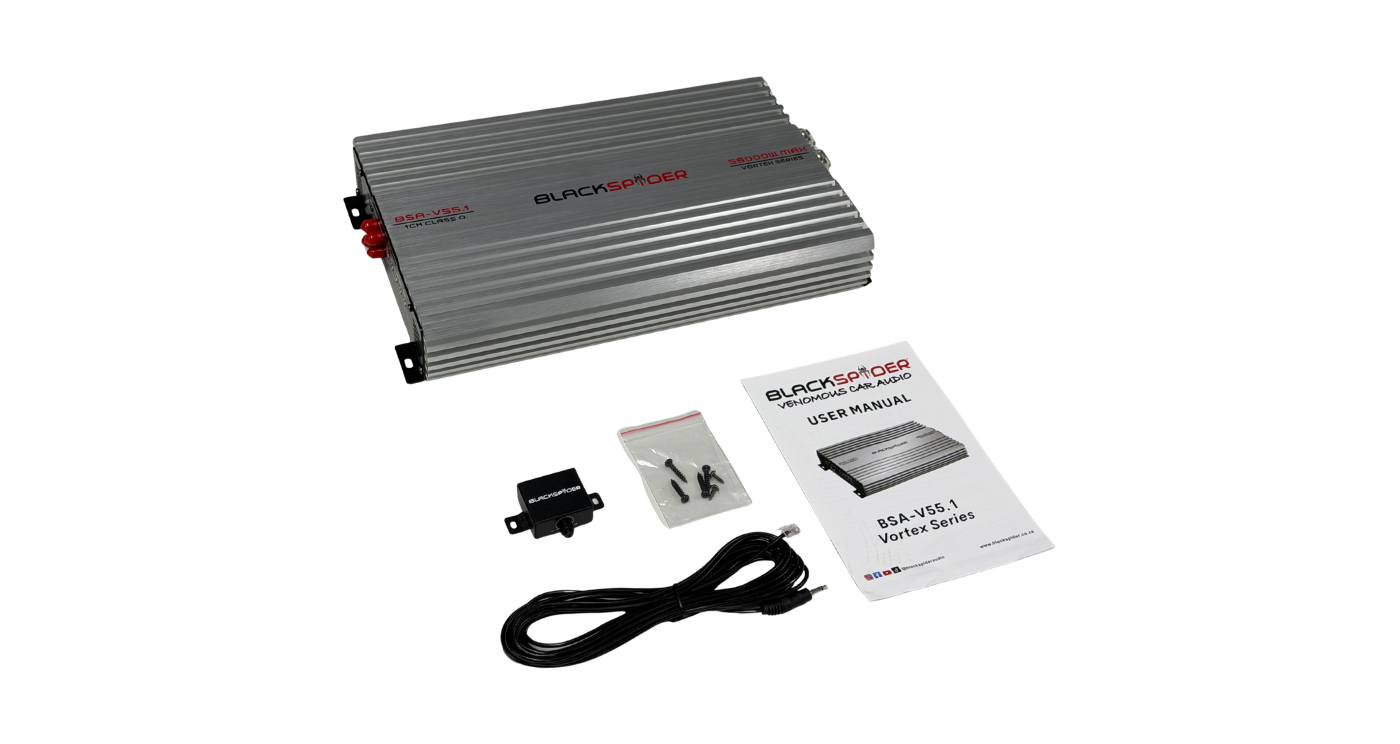

1 × BlackSpider BSA-V55.1 Vortex Series Amplifier
1 × Wired Remote Level Controller
1 × Remote Controller Cable
1 × User Manual
Mounting Screws / Hardware
